Sharper micro-detail for premium dials
Fine markers and small text fail quality checks. SIGNRACER process control keeps detail sharp and reduces reject risk.
Application image: Custom Watch Dial Printing<br>For Prototype to Series Production: Use industrial UV printing to develop custom watch dials from pilot samples to series production, with controlled micro-detail, colour, registration, and layer build.
Custom Watch Dial Printing
For Prototype to Series Production
Use industrial UV printing to develop custom watch dials from pilot samples to series production, with controlled micro-detail, colour, registration, and layer build.
Share your artwork and substrate details. We aim to respond within one business day with the next validation step.
What You Gain with SIGNRACER Watch Dial Printing
Controlled colour across approved batches
Inconsistent color causes rework and delayed approvals. Controlled ink and curing behavior improves batch-to-batch repeatability.
Faster changeovers for custom watch dials
Manual setup overhead hurts limited-edition economics. Digital file-to-print workflow speeds up design changes without tooling delays.
Registration control in multilayer jobs
Misalignment in multilayer graphics drives scrap. Encoder-guided motion and stable setup improve alignment consistency over long runs.
Recommended Stack for Custom Watch Dial Printing
SIGNRACER 2512-HB platform
High-bridge industrial UV system designed for precise positioning and stable multi-pass production output.
See Stack Details

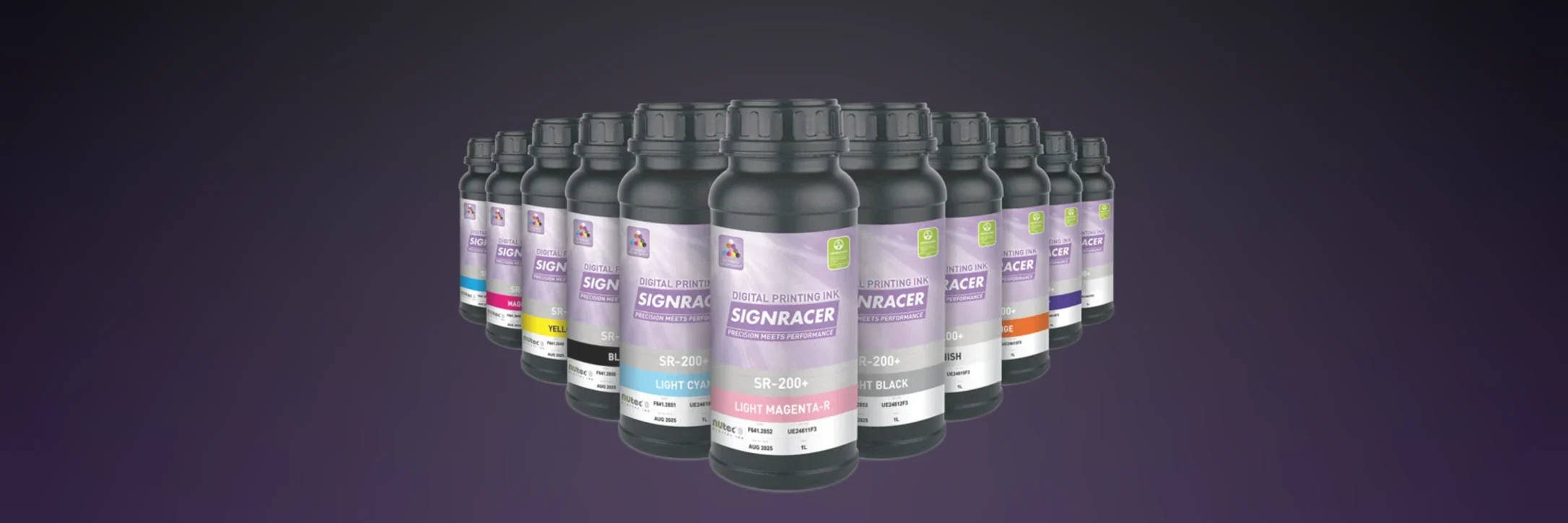

SR-200+ ink workflow
Extended-colour options for selected dial constructions, with adhesion, durability, appearance, and assembly compatibility validated on the finished dial.
See Stack Details
Technology optimization layer
Motion control, curing strategy, and parameter tuning to reduce process variation and protect output quality.
See Stack Details
Application and ramp-up support
Structured onboarding and process guidance help teams move faster from validation to production.
See Stack DetailsFrom Artwork to Approved Dial in 4 Steps
1
File and color preparation
Prepare layered artwork and define production-ready targets for detail, alignment, and color tolerance.
2
Precision UV printing
Run calibrated print settings matched to dial material and design complexity.
3
LED UV curing and handling
Cure each layer for dimensional stability and cleaner downstream handling.
4
Quality control and release
Validate registration, micro-detail, and color consistency before production release.
Proof Points for QA and Procurement
Use these technical references to compare watch dial digital printing solutions and de-risk your vendor decision:
- 635 × 900 dpi production resolution supports sharp markers, typography, and micro-detail.
- Linear carriage encoders with 1-micron measurement resolution support motion feedback; finished registration tolerance must be established on the complete process.
- Carriage speed is specified up to 1.2 m/s; approve detail and registration at the print mode used for production.
- White, varnish, and extended-color effects support premium multilayer dial programs.
- SR-200+ offers an extended ink set including Orange, Violet, light colors, White, and Varnish; approve the configured set on the actual dial construction.
- Workflow design focuses on reducing registration-related rejects and protecting yield.
Watch Dial Programs We Support
Limited-edition collector dials
Custom watch dial printing for shorter design cycles while maintaining fine-detail quality in short runs.
Raised UV-ink and relief effects
Multiple LED UV ink layers can build tactile relief and dimensional textures, subject to geometry, adhesion, finish, and assembly validation.
Prototype-to-production transfer
Reduce process drift between early validation and scaled production.
Go-Live Plan for Watch Dial Production
1
Qualification week
Review materials, artwork, and acceptance criteria. Define test plan and process targets.
2
Setup week
Configure print and curing parameters and validate first approved samples.
3
Pilot phase
Run pilot jobs, confirm quality thresholds, and optimize for throughput and stability.
4
Scale phase
Finalize SOP, training, and control loop for repeatable production operation.
What to Prepare Before a Watch Dial Test Print
- Dial substrate and coating families validated.
- Color tolerance and registration acceptance criteria documented.
- Pilot yield target and QA checkpoints agreed.
- Operator handover and escalation workflow prepared.
- Ongoing optimization cadence aligned with production plan.
Watch Dial and Watch Face Printing FAQ
The workflow combines encoder-guided positioning and calibrated process control to support repeatable alignment in production runs.
Yes. Teams typically validate on pilot batches and then scale using the same digital workflow and quality gates.
Batch consistency is managed with profile-based setup, controlled curing, and substrate-specific validation before release.
Common projects include coated metals, ceramics, and selected technical plastics used in watch manufacturing.
Most teams start with a short validation cycle, then move into pilot production and SOP handover.
Share artwork files, substrate list, finish targets, and acceptance criteria to start a focused test print plan.
Start Your Custom Watch Dial Test Print Program
Send your artwork and dial construction details to define the tests, process settings, and acceptance criteria needed between sample approval and series production.
Request test prints and work with our application team on a validation plan for your production targets.
